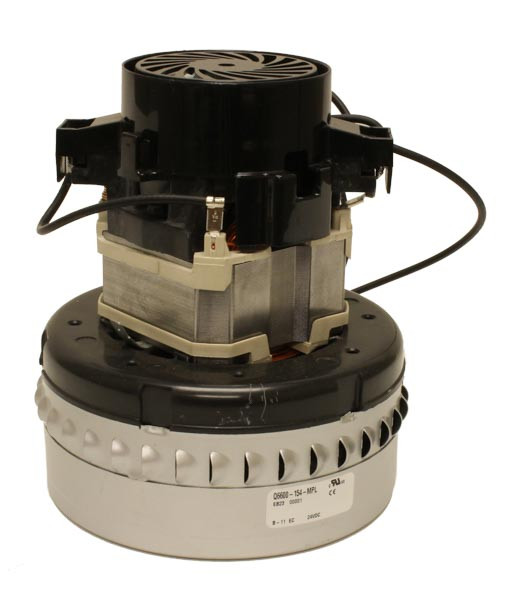

Electro Motor Q6600-154T-MPL 2 Stage 5.7 inch; Vacuum Motor – 24 Volt DC
Upgrade or replace your worn motor with the Electro Motor Q6600-154T-MPL, a high-performance.2 stage 5.7″ vacuum motor designed for applications requiring dependable suction and clean, efficient operation. This 24 volt vacuum motor is built with a bypass design and peripheral discharge, making it ideal for equipment that requires separation of working air from motor ventilation air.
The Q6600-154T-MPL vacuum motor is engineered for use with clean, dry, filtered air only and is a strong choice for specialty vacuum and central vacuum applications where reliable airflow and sealed suction are essential.
Why Protect Your New Vacuum Motor?
Don’t risk premature failure on your new motor. To help extend motor life and maintain peak performance, we highly recommend adding a Filtered Motor Gasket, part # MTR1500
This exclusive filtered motor gasket is specially designed to help protect your vacuum motor by filtering out dust and dirt before they reach the motor and cause damage. It installs flush like a standard gasket, is easy to apply, and does not add height during mounting.
Need a standard gasket instead? See part # MTR512
For additional protection, we also recommend using a motor filter to help keep dust and dirt away from the motor. This helps prolong motor life and is strongly recommended for all vacuum motors. See part # MTR553
Motor Specifications
- Model: Q6600-154T-MPL
- Motor Diameter: 5.7″
- Stages: 2 Stage
- Motor Type: Bypass
- Discharge: Peripheral
- Power: 24 Volt DC
- Sealed Vacuum: 45.5 inches
- Maximum Air Watts: 112
- Maximum Air Flow: 72.6 CFM
- Maximum Start-Up Amp Draw: 15 Amps
- RPM: 15,891
Design Application
- Designed for equipment operating in environments that require separation of working air from motor ventilation air
- For use with clean, dry, filtered air only
- Ideal for specialty vacuum systems and other compatible 24 volt applications
Important Ordering Note
This motor is a special order item. Please confirm compatibility with your equipment before purchasing.
Order the Electro Motor Q6600-154T-MPL 24 Volt 2 Stage 5.7″ Vacuum Motor today for dependable performance, strong suction, and long-lasting operation in your compatible vacuum system.
Installation note:
Over-tightening of the mounting screws may cause the fan casing to push into the fan blades and may damage the fans. This situation is not covered under the Motor Warranty Program and will not be approved if submitted. If motor is turned in under warranty and is found to have the type of damage explained above, the warranty will be denied. When mounting your new motor, in most cases a touch BEYOND “finger tight” is all that is required to mount and seat the motor sufficiently.
