Description

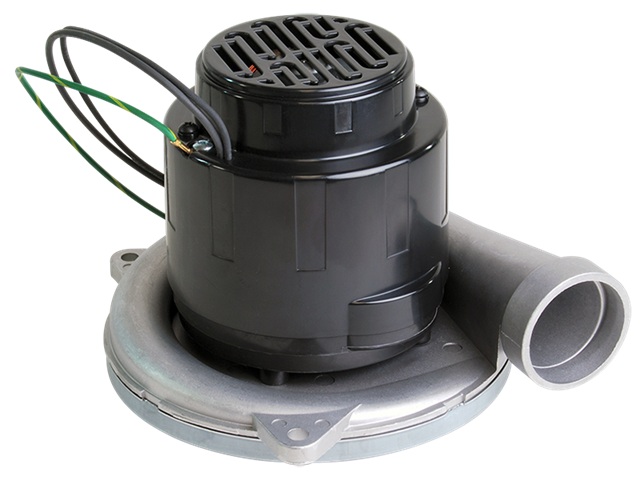

New Lamb Ametek 122236-18 motor is 2-stage, 6.6 inch, 230 volt.
It has more than a 1/2″ taper at the bottom (see additional picture).
It is suggested you replace the motor gasket. For a standard motor gasket purchase part # MTR511.
For best results and protection of your motor use our Filtered Motor Gasket part # MTR1500. Our Filtered Motor Gasket is the only one of its kind! Specially designed by our engineers to provide your motor with years of trouble free service! Don’t risk premature motor failure. Our filter will not add any height to your motor during mounting. The filtered motor gasket fits flush and is as easy to apply as a regular gasket!
Uses motor brushes part # MTR1190.
Motor Specs:
- Motor Type: Bypass
- Discharge: Tangential
- Bearings: Double Ball Bearing
- Sealed Vacuum: 160 inches
- Maximum Air Watts: 513
- Maximum Air Flow: 170 CFM
- Maximum Amps: 5.6
- Motor Speed: 27,587 RPM
Special Features:
- 1500+ hours life (curved brush)
- High efficient cooling system
- High-Efficiency: Galaxy – lamination
- Standard with thermostat and inlet tube
- Up to 41% Overall Efficiency
- Lamb Green Power Label
Design Applications:
- Commercial and Residential Central Cleaning Systems
- Car wash vac and blower systems
- Equipment operating in environments requiring separation of working air from motor ventilating air.
- Designed to handle clean, dry, filtered air only
Installation note:
Over-tightening of the mounting screws may cause the fan casing to push into the fan blades and may damage the fans. This situation is not covered under the Motor Warranty Program and will not be approved if submitted. If motor is turned in under warranty and is found to have the type of damage explained above, the warranty will be denied. When mounting your new motor, in most cases a touch BEYOND “finger tight” is all that is required to mount and seat the motor sufficiently.
